Woom OFF 5
Head for the mountains!

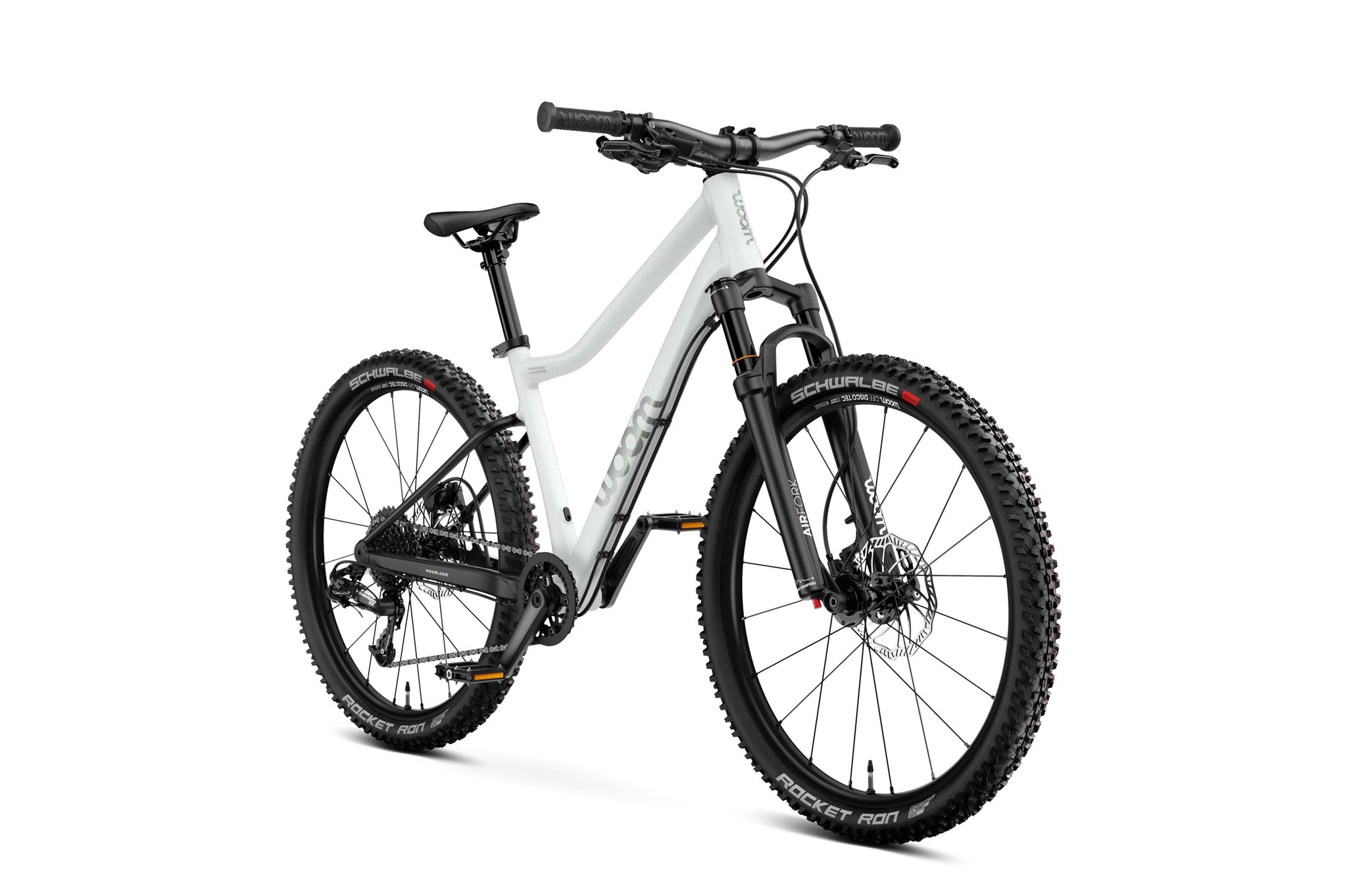

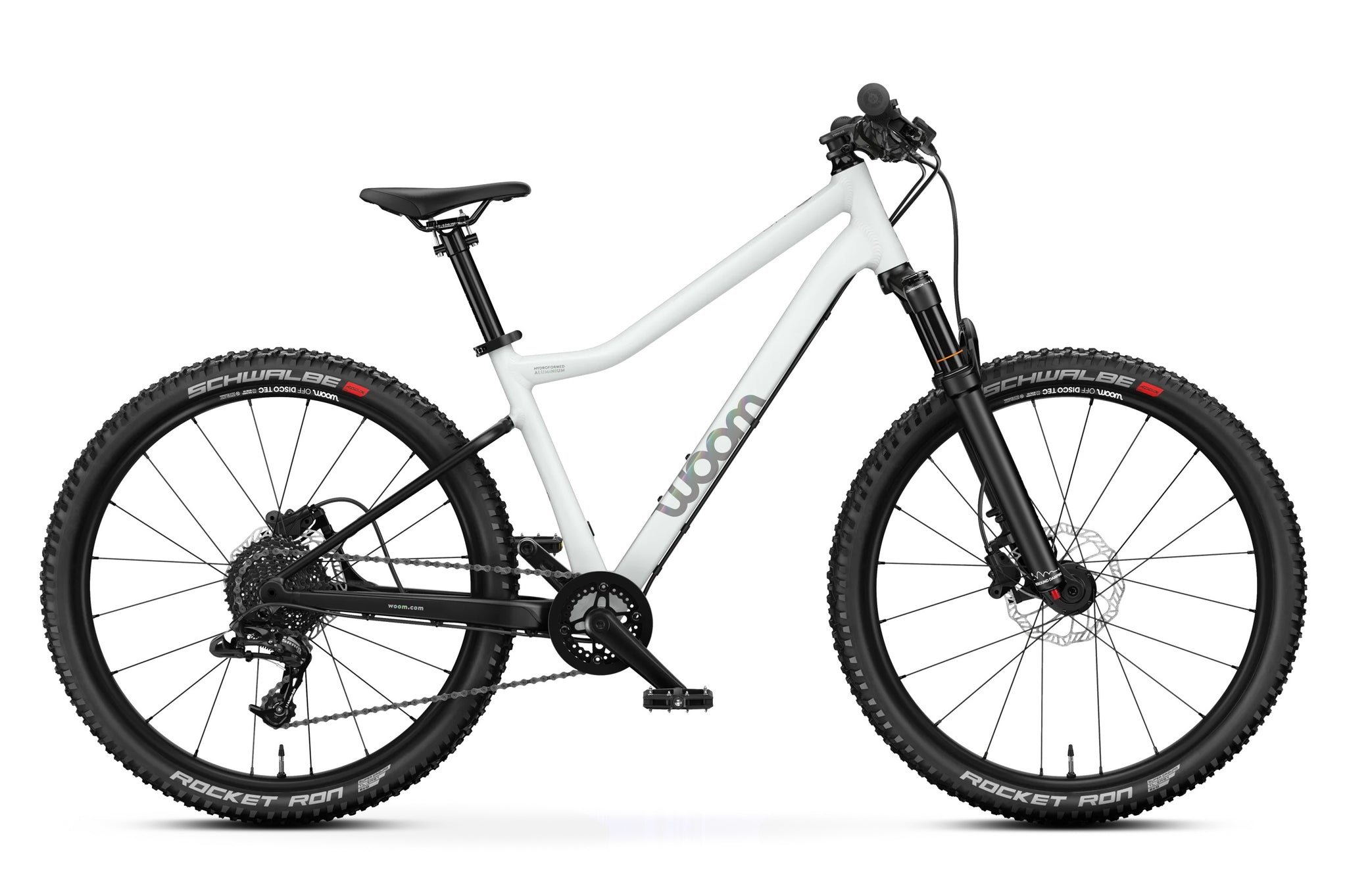

The WOOM OFF 5 24" Pedal Bike is the perfect ride for children ages 7-11. With child-specific geometry, a lightweight carbon fork, and an ergonomic saddle, this bike offers a comfortable and efficient cycling experience. Equipped with disc brakes, tubeless-ready wheels, and a flip-flop stem, this bike is ready for any adventure. Plus, the dropper-post-ready seat tube allows for easy adjustments as your child grows.
Woom OFFAIR 5 comes with front suspension, 9 gears and disc brakes designed for children aged 7 years and over.
Geometry
Tire/Wheel 24"
Cockpit / Handlebar 34.4"
Steering Angle 69°
Top Tube Horizontal 21"
Wheelbase 38"
Seat Tube Angle 70°
Minimum Saddle Height 28.2"
Maximum Saddle Height 32.28"
Crankarm Lenght 5.12"
Handlebars adjustability Angle +/-15°; Height +/- 0.47″
Specification:
Frame
Lightweight, high-quality 6061 T6 aluminum with butted and hydroformed tubes
24″ wheels
Easy-access low top tube to assist dismounting
Long wheelbase and low center of gravity to aid balancing
New, dropper seatpost-ready design
Gears
9 speeds
SRAM trigger shifter
SRAM X5 derailleur
9 speeds
SRAM trigger shifter
SRAM X5 derailleur
Fork
Light carbon fork
1″ – 1 1/8″ baby taper shaft
100 x 15 mm through axles
Post mount for disc brake
Light carbon fork
1″ – 1 1/8″ baby taper shaft
100 x 15 mm through axles
Post mount for disc brake
Wheels
Superlight woom OFF DISCO TEC double-chamber aluminum rims
Aluminum hubs with sealed industrial bearings
Through axles for maximum torsional strength (100 x 15 mm front / 135 x 12 mm rear)
20 G14 spokes, double-crossed spoking
Aluminum nipples
Headset
Fully integrated 1″ – 1 1/8″ headset
Sealed industrial bearings
Superlight woom OFF DISCO TEC double-chamber aluminum rims
Aluminum hubs with sealed industrial bearings
Through axles for maximum torsional strength (100 x 15 mm front / 135 x 12 mm rear)
20 G14 spokes, double-crossed spoking
Aluminum nipples
Headset
Fully integrated 1″ – 1 1/8″ headset
Sealed industrial bearings
Tires
24 x 2.35″ Schwalbe Rocket Ron with ADDIX SPEED rubber compound
Quality MTB tires with low rolling resistance, maximum grip, good shock absorption and excellent durability
24 x 2.35″ Schwalbe Rocket Ron with ADDIX SPEED rubber compound
Quality MTB tires with low rolling resistance, maximum grip, good shock absorption and excellent durability
Presta valves, tubeless conversion ready
StemForged aluminum
CNC-machined - Handlebars attached via two clamps
+/-15° flip-flop design to adjust handlebar height
Length: 50 mm
Saddle
Ergonomically designed to fit children's anatomy
Side protection to lean against walls
Handlebars
Wide, ergonomically adapted and lightweight aluminum bars for more control
Sandblasted and silver anodised
Width: 585 mm
Rise: 20 mm
Ergonomically designed to fit children's anatomy
Side protection to lean against walls
Handlebars
Wide, ergonomically adapted and lightweight aluminum bars for more control
Sandblasted and silver anodised
Width: 585 mm
Rise: 20 mm
Seatpost
27.2 x 250 mm
Anodised aluminum seatpost with insertion marks that indicate the minimum
Grips
Child-friendly thanks to small diameter
100% silicon for maximum grip
27.2 x 250 mm
Anodised aluminum seatpost with insertion marks that indicate the minimum
Grips
Child-friendly thanks to small diameter
100% silicon for maximum grip
Single-clamp grip to prevent twisting
Drive
Drive
Lightweight, forged aluminum 5.1" (130 mm) kid-specific cranks with narrow tread (Q-factor)
Narrow-wide chainring with 28 teeth in the front
Cassette with 11-34 teeth in the back
Flat pedals made from fibre-reinforced nylon
Narrow-wide chainring with 28 teeth in the front
Cassette with 11-34 teeth in the back
Flat pedals made from fibre-reinforced nylon
Chromoly axle and sealed industrial ball bearings
Brakes
Hydraulic disc brakes from Promax
Disc diameter front/back: 160/160mm
Ergonomic brake levers designed for children's hands
Gears
9 speeds
SRAM trigger shifter
SRAM X5 derailleur
Wheels
Superlight woom OFF DISCO TEC double-chamber aluminum rims
Aluminum hubs with sealed industrial bearings
Through axles for maximum torsional strength (100 x 15 mm front / 135 x 12 mm rear)
20 G14 spokes, double-crossed spoking
Aluminum nipples
Tires
24 x 2.35″ Schwalbe Rocket Ron with ADDIX SPEED rubber compound
Quality MTB tires with low rolling resistance, maximum grip, good shock absorption and excellent durability
Brakes
Hydraulic disc brakes from Promax
Disc diameter front/back: 160/160mm
Ergonomic brake levers designed for children's hands
Gears
9 speeds
SRAM trigger shifter
SRAM X5 derailleur
Wheels
Superlight woom OFF DISCO TEC double-chamber aluminum rims
Aluminum hubs with sealed industrial bearings
Through axles for maximum torsional strength (100 x 15 mm front / 135 x 12 mm rear)
20 G14 spokes, double-crossed spoking
Aluminum nipples
Tires
24 x 2.35″ Schwalbe Rocket Ron with ADDIX SPEED rubber compound
Quality MTB tires with low rolling resistance, maximum grip, good shock absorption and excellent durability
Presta valves, tubeless conversion ready
Saddle
Ergonomically designed saddle with Quick-release seatpost clamp
Weight
Saddle
Ergonomically designed saddle with Quick-release seatpost clamp
Weight
Bike weight: 20.7 lbs
Max weight: 155 lbs combined weight of Rider and cargo
